Quick Details

  • Condition: New
  • Type: Drum Drying Equipment
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: JY
  • Model Number: GZZ100P
  • Voltage: 380V
  • Power(W): 9kw
  • Dimension(L*W*H): L2000mm*W2250mm*H2540mm
  • Weight: 2000KG, 2000KG
  • Certification: ISO
  • Warranty: --
  • After-sales Service Provided: No overseas service provided

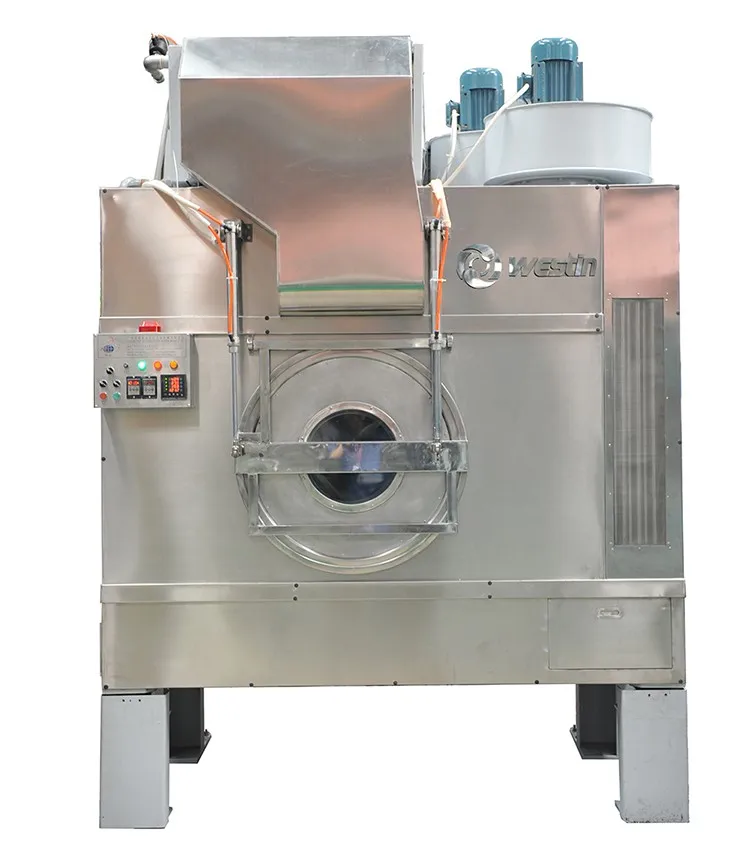

  • Name: 100KG Energy Saving High Speed Dryer
  • Inner drum size: 1400mm*1430mm,use 1.2mm stainless steel(304#) punching.
  • Outer drum size: L2230mm*W1900mm*H2260mm
  • Shell size: front plate use 1.5mm stainless steel drawbench plate.
  • Washing speed: 26r/min,motor power 9KW
  • Capacity: 100KG
  • Eletric: main motor inverter control

Packaging & Delivery

Packaging Details plastics package,wooden package
Delivery Time Shipped in 30 days after payment







Product Description



» Description:



1)Inner drum size:φ1400mm×1430mm,use 1.2mm stainless steel(304#) punching.
2)Outer drum size:L2230mm×W1900mm×H2260mm.
3)Shell size:front plate use 1.5mm stainless steel drawbench plate.
4)Washing speed:26r/min,motor power 9KW.
5)Weight:2000KG,Capacity:100KG.

6)  Eletric:main motor inverter control.











» Characteristic:

1) 1:22 large capacity rotor cagespace, drying will be faster.
2) Two-stage heat energy recycle(condensate water + heat wind energyrecycle),it can reduce usage of steam, increasethe heat energy use ratio.
3) Optimize air duct design, reduce wind drag,it can increase the heat efficiency.
4) Heat return air exchanger, mounting screw on the front of the right, easy for maintenance.
5) Air intake is in the middle of the machine, far away from the dust on the bottom.
6) Automatic titling discharge will be more smooth, save human, easy usage.
7) Titling buttom is modular design,disassembly and install more convenient(separate package when loading in the container,install when in the factory).
8) Automatic air control door.
9) Inner drum use 1.5mm high quality (304#) stainless steel.
10) Bottom of the door to the ground with height 95cm.
11) All the body with heat preservation cotton.
12) Air control tumble cold wind device.







Packaging & Shipping


» Packing & Shipping:



  1. Plastic film is packing standard for Full Container Loading or Bulk Cargo. Floor sill is customized for Bulkcargo.

  2. Spare Parts and Attachments packed in Carton, placed into the machine with Harmless & Scatheless.

  3. Delivery is always by sea.





Company Information





   JunYe group is an enterprise that specialized in designing and manufacturing washing and dyeing machines.With over 30 years of industy experience,we provide high quality equipments for foreign and domestic customers, such as washing series and automatic washer extractor,dyer,normal and temperature cloth dyer,air flow frabric dyer,sample dyer,hank yarn dyeing cabinets, and steam dyeing machine etc. JunYe has the most asdvanced process and testing machines and a team of proffessional engineers to ensure our product quality meets the market expections.

















FAQ





1. How long is the product warranty period ?

 A: The product warranty period  is 12 months



2. I am a foreign customers, if the machine works wrong, how your company resolved ?

 A: We have professional engineers abroad, after receiving your request, we will solve your problems at first time.



3. How much is  MOQ of your machine?

 A: Our machines MOQ  is 1 set and also support the mixed batch.



4.Where can we buy the machine's parts?

 A: Our company can provide machines for your any time  We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc. Technological support.
